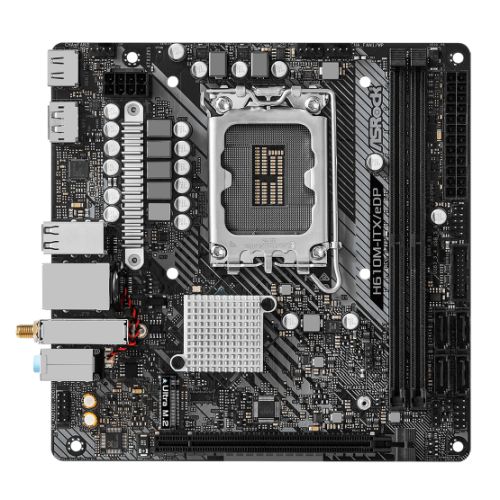

Asrock H610M ITX/eDP, Intel H610, 1700, Mini ITX, 2 DDR4, HDMI, DP, eDP, Wi-Fi, PCIe4, 1x M.2
£118.77 + VAT
Delivery
Get it in 3-4 Days
Payments
Flexible payment options
Repairs
Expert repair and install
Product Specifications
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: Intel 1700
- Chipset: Intel H610
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Up to 3200 MHz
- Maximum Memory: 64GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort 1.4
1 x eDP 1.4 - PCI/PCI Express: 1 x PCIe 4.0 x16
- Storage: 4 x SATA III
1 x M.2 (2280) - SATA & PCIe - Wireless: 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
Supports Bluetooth 5.1 + High speed class II - LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)" - Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x eDP Signal
1 x CPU Fan
1 x Chassis Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
1 x Screw for M.2 Socket" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.8250 kg
- Warranty: 2 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
Description
H610M-ITX/eDP
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 6 Phase Dr.MOS Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- 6 USB 2.0 (2 Front, 4 Rear)
- Intel® Gigabit LANIntel® 802.11ac WiFi + Bluetooth 5.1
ASRock SPD (Side Panel Display)
It’s compatible with eDP side panels, which could be connected without adapter boards and display in a wonderful way!
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Intel® Gigabit LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
